Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

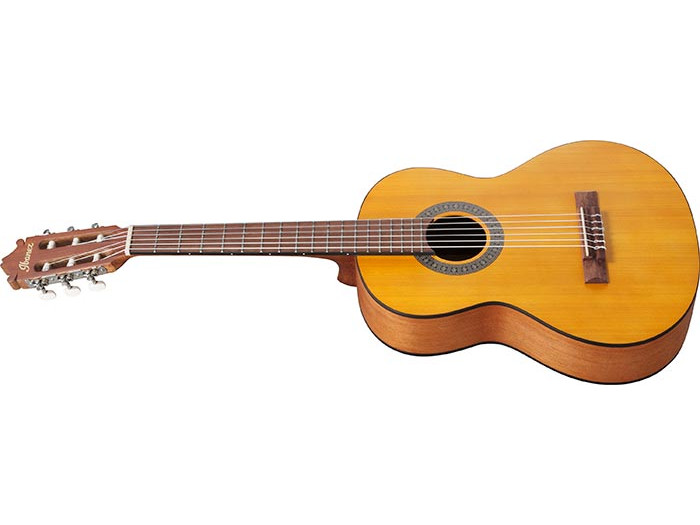

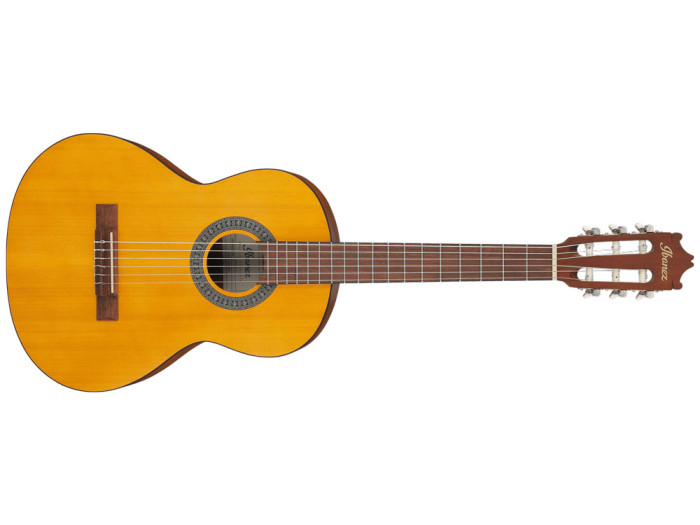

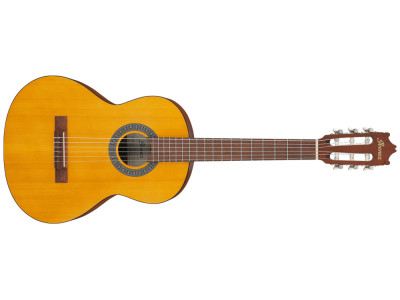

3/4 size classical guitar (580mm scale length, 46mm width nut)
body shape 3/4 Classical body
top Spruce top

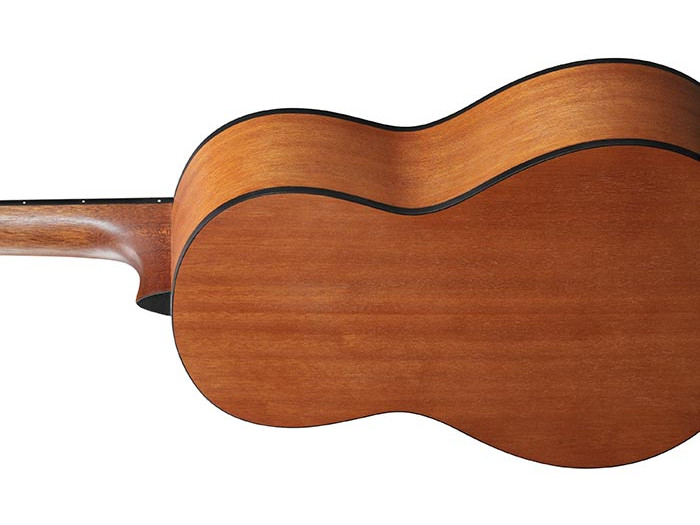

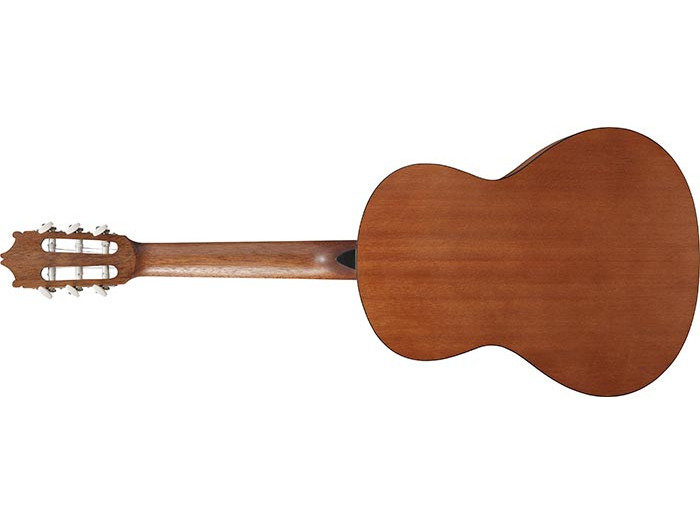

back & sides Meranti back & Meranti sides
neck GAMeranti neck
fretboard Nandu Wood fretboard
bridge Nandu Wood bridge
soundhole rosette Classical water decal

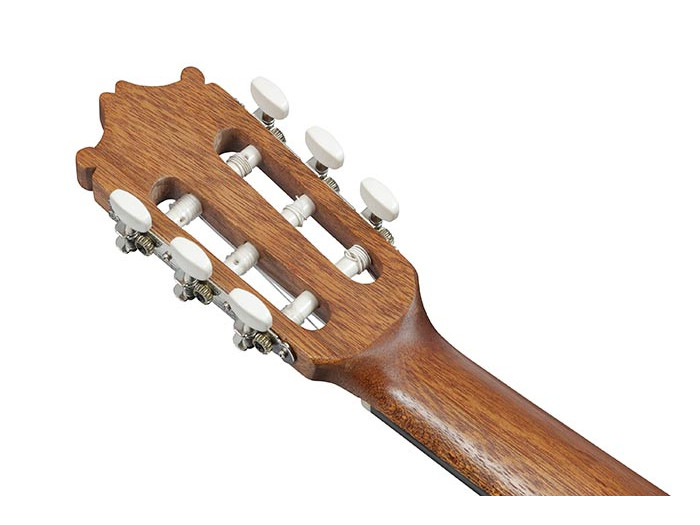

tuning machine Chrome Classical tuners
number of frets 18
string gauge .0285/.033/.041/.030/.036/.044
string space 11.6mm
factory tuning 1E,2B,3G,4D,5A,6E
NECK DIMENSIONS
Scale : 580mm/22.8"
a : Width 46mm at NUT
b : Width 55.6mm at 14F
c : Thickness 21mm at 1F
d : Thickness 22mm at 7F
Radius : Flat
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
BODY DIMENSIONS
a : Length 17 3/8"
b : Width 13 1/8"
c : Max Depth 3 5/8"
