Cutting-edge HX Effects in a Compact Stompbox
Get to know them!
Boasting 250+ stunning effects emulations, the HX One merges Line 6’s world-renowned HX technology with the workflow and form factor of a traditional stompbox. This stereo multi-effects floor processor offers a superbly straightforward approach similar to a standard guitar pedal, with one effect available at a time to keep things simple and efficient onstage and in the studio. A high-visibility OLED screen and tactile controls deliver an inviting and easy-to-navigate feel, from dialing one of your 128 onboard presets to adjusting the HX One’s adjustable impedance and buffer settings. You also get an extensive I/O section and versatile control options, including two 8-pin MIDI In/Out-Thru ports, USB-C for the HX One Librarian app, footswitch/expression jack capabilities, and a Flux/Tap switch to access tap tempo and automatic parameter shifts. No matter what type of rig you’re running, the Line 6 HX One’s vast effects library and easy operation unlock a whole new realm of sonic possibilities.
More than 250 HX-series effect emulations on tap
The HX One boasts over 250 top-tier effects emulations from the HX ecosystem, containing a vast array of classic stompbox effects, studio classics, and Line 6 originals. Designed for simplicity and ease of use, HX One’s single effect block and three knobs grants this pedal a highly intuitive workflow that guitarists find is far more akin to a traditional 3-knob effects pedal than your typical multi-effects unit. Furthermore, HX One’s distinctive “Flux” function gives you the power to automate parameter changes with the tap of a switch.
Stompbox-like workflow

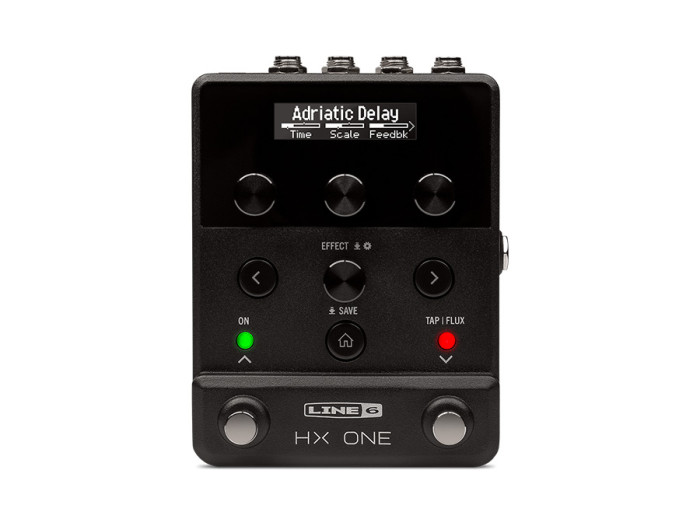

Editing effects, creating custom presets, and adjusting settings is a breeze thanks to the HX One’s high-visibility OLED screen and straightforward controls. And while this pedal’s tactile knobs and buttons are perfect for dialing in your dream tone, the optional HX One Librarian app supplies an even simpler means of organizing and adjusting your 128 presets.
Pedal Type: Multi-FX
Analog/Digital: Digital
Presets: 128 User
Number of Effects: 268 models
Effects Types: 59 x Dist, 26 x Dynamic/EQ, 56 x Mod, 45 x Delay, 29 x Pitch/Synth, 25 x Wah/Filter
Looper: Up to 120 seconds (1/2 speed), Up to 60 seconds (full speed)

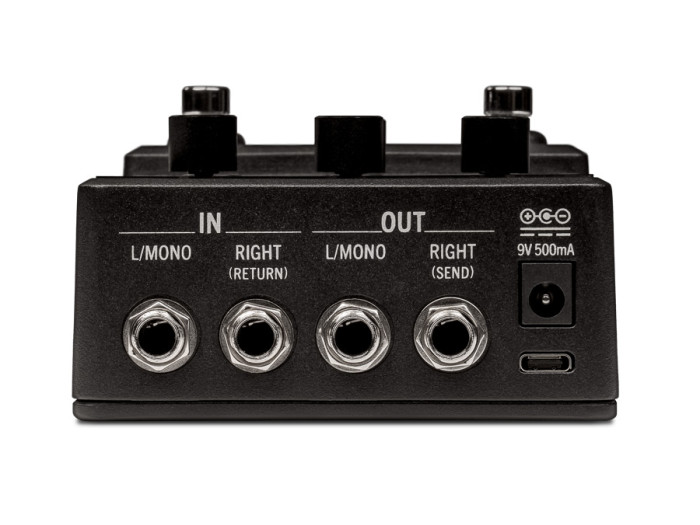

Inputs: 2 x 1/4" TS (L/Mono, R)
Outputs: 2 x 1/4" TS (L/Mono, R)

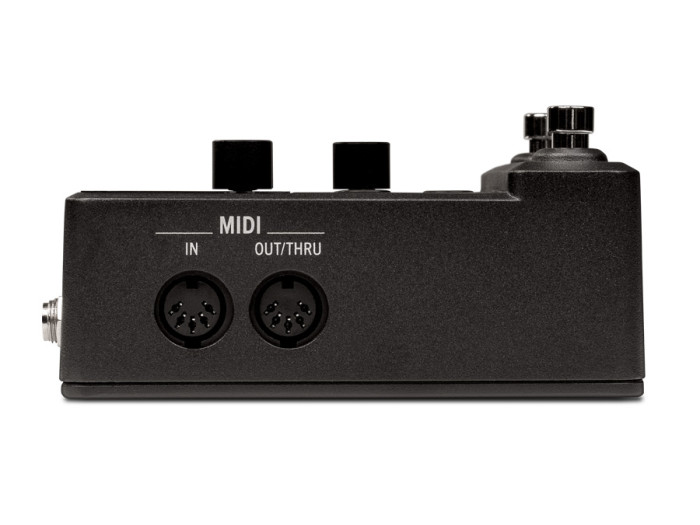

MIDI I/O: 2 x 5-pin DIN (In, Out/Thru), USB
USB: 1 x Type C (Updates, Midi)

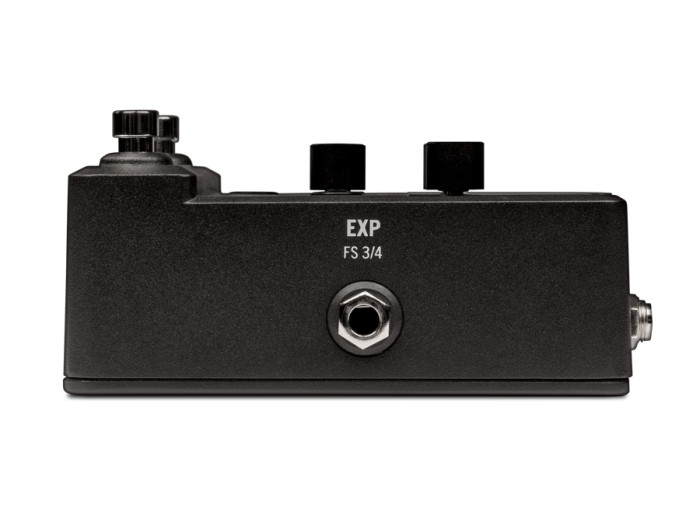

Other I/O: 1 x 1/4" TRS (Expression, Footswitch)
Expression Control: Yes
True Bypass: Yes, Switchable
Bypass Switching: True Bypass, Buffered DSP Bypass
Features: Adjustable Input Impedance
Software: Line 6 HX One Librarian, Line 6 Central
Power Source: 9V DC (500mA) power supply (included)
Height: 2.4"
Width: 3.8"
Depth: 4.9"
Weight: 0.99 lbs.
