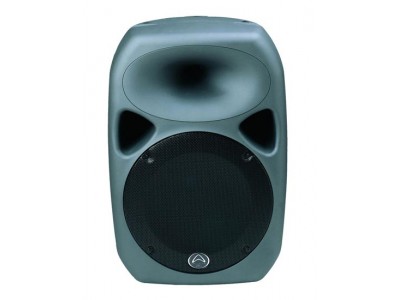

Wharfedale Titan-12

Wharfedale Titan-12
[klikni na sliku za uvećan prikaz]
Ovaj proizvod trenutno nije dostupan.

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

Wharfedale Pro TitanT 12 series with 12"/2" voice coil LF components and 44mm Titanium Diaphragm true Compression Driver and the integrated 90°x60° Waveguide horn to achieve a clean volume dispersion with wide, even reflection of the high frequency. The cabinets of the TitanT series are made of extremely resonance proof High Density Polyethylene structural foam finished. This material gives a lightweight and very robust enclosure.

The system can be arrayed for additional coverage and SPL requirements. The elliptical waveguide HF section provides consistent coverage over its specified range for low feedback in open mic applications and improved array smoothness, whether applied to a reverberant or "dry" club type acoustic environment The TitanT 12 integrates successfully with the room for superior sound quality with a minimum of equalization and tuning.

For permanent sound installations, architectural compatibility of primary importance, mounting points become critical. TitanT 12 series threaded points (Three on top, four on bottom, and three on each side for horizontal rigging) set a standard with Omnimount footprint on bottom.

Karakteristike:

MODEL

TITAN 12 PASSIVE

GENERAL INFO
System type 12" 2-way passive
Frequency response +/- 3db 55-20kHz
Sensitivity (db 1w@1m) 98dB
System impedance 8 ohms
Maximum SPL Peak dB 128dB
POWER HANDLING (Watts)
Continuous RMS 250
Program 500
Peak 1000
LF DRIVER
Lf driver size mm / inches 1x12"
Lf voice coil size 64.26mm/2.5"
HF SECTION
Hf voice coil size 44mm/1.75"
Hf type Compression Driver
Hf diaphragm material Titanium
Horn dispersion (H x V) 90 x 60
Hf exit size mm / inches 25mm/1"
Hf horn shape EWGT - Elliptical Waveguide
Hf peak indicator Peak LED ring in horn throat
CROSSOVER SECTION Type: 2-way
Crossover Frequency / Filter 2.4 kHz / Linkwitz-Riley
Hf driver protection DTFT - 175 Dynamic Thermal Filament
Hf EQ (Boost / Flat) 3dB boost (long-throw) / Flat (near-field)
PHYSICAL FEATURES
Finish Black or White
Handle quantity 2 carry handles (one on each side)
Suspension points (10) M8 points for safe flown applications, (4) M8 inserts on bottom in OmniMountR 60.0-type footprint
Stand adapter - BOTTOM Speaker pole-mount receptacle with lock screw, Optional wall-mount bracket
Stand adapter - TOP Optional dual-unit array speaker stand hardware
Enclosure type Molded Polypropylene
Enclosure shape Trapezoidal for vertical array and horizontal stage monitor applications
IN / OUT PANEL (speaker Level)
Input connector 2 x 1/4" jacks and2 x SpeakonT
DIMENSIONS & WEIGHT
Height ( mm / ins ) 556mm/21.88"
Width Front / Rear / mm / ins 384mm/15.1" / 180mm/7.1"
Depth ( mm / ins ) 312mm/12.3"
Net weight ( kg / lbs ) 12kg/26.4lbs
Gross weight ( kg / lbs ) 14kg/30.8lbs

Proprietary 90 x 60 Elliptical Wave Guide Horn design
Custom Heavy duty moisture-proof 12" LF driver
High-end Titanium HF Compression Driver
Tough Polypropylene molded cabinet with rubber padded handles
Multiple M8 rigging points and integral tripod stand adapter
Rugged protective grille and top-stacking receptacles
Trapezoid shape for arrays as well as stage monitor applications
DTFT - High-Frequency Driver Overload protection
Sophisticated Linkwitz-Riley 24dB/octave crossover design
High-Frequency EQ switch (boost/flat) for long-throw applications
Both 1/4" and NL4 connectors provided
Available in grey & white



TITAN 12 PASSIVE BROCHURE
TITAN 15 PASSIVE MANUAL
TITAN 8 PASSIVE BROCHURE
TITAN SERIES BROCHURE
TITAN SERIES MANUAL
TITAN 15 PASSIVE BROCHURE
TITAN 12 PASSIVE MANUAL
