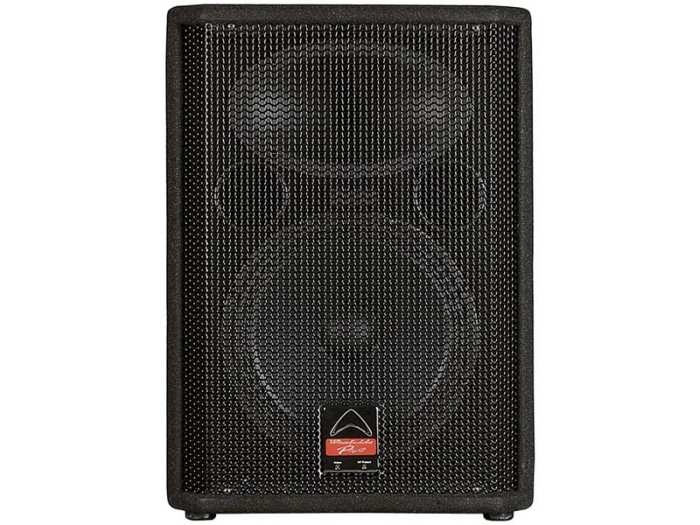

Wharfedale EVP-X15P

[klikni na sliku za uvećan prikaz]

Podeli

Ovaj proizvod trenutno nije dostupan.

pogledaj ostale Wharfedale proizvode

Odštampaj stranicu

Detaljnije o cenama

Garantovano najniže cene

Ukoliko pronađete povoljniju ponudu za ovaj instrument, dobićete ga od nas jeftinije za 10% od razlike u ceni!

Opis proizvoda:

Dvosistemska zvučna kutija sa 15" zvučnikom. Verzija sa integrisanim pojačalom, ekvilajzerska kontrola visokih i niskih tonova. Frekventni raspon od 45Hz do 20000Hz sa impedansom 8?. Trapezoidnog oblika, konstantne snage 400W, dimenzija 675x450x460 mm, težine 29.5 kg

The EVP-XP is the powered version of the EVP-X Series. Built around the development of an exceptional new Elliptical Waveguide Horn coupled with a ferrofluid cooled 44mm titanium compression driver, the high frequency performance and system reliability of this series is unprecedented in this product class. High output capability and low distortion with excellent high frequency extension characterize these new drivers. The EVP-XP series loudspeakers combine exceptional design and features with outstanding sound quality to provide a choice of sound systems to suit almost any application.

EVP-X15P

Powered version for EVP-X15
15" Two-way full range
45-18kHz frequency response (+/-3dB)
High/low EQ control, balance line output
2 x combined jack and XLR balanced input connectors
400W RMS / 600W peak amplifier power

Karakteristike:

MODEL	EVP-X15P
GENERAL INFO
System type	15" 2way powered
Frequency response +/- 3db	45 - 18kHz
LF DRIVER
Lf driver size mm / inches	1x15"
Lf voice coil size	64.26 /2.5"
HF SECTION
Hf voice coil size	44/1.75"
Hf diaphragm material	Titanium
Horn dispersion (H x V)	90 x 60
Hf exit size mm / inches	25 /1"
Hf horn shape	Elliptical
CROSSOVER SECTION
Crossover Frequency / Filter	N/A
PHYSICAL FEATURES
Finish	Black carpet
Stand adapter - BOTTOM	Yes
Stand adapter - TOP	No
Enclosure shape	Trapezoid
AMPLIFIER POWER
Continous RMS	400W
Peak (Wats)	600W
ProtectionType	Dynamic/AGC
Power on indicator	Green LED
System dynamic AGC	Orange LED
Phase switch	N/A
INPUT SENSITIVITY
Mic	5mV
Rca	0.5V
Line	0.775V
CONNECTORS
Input connectors A	Jack/XLR combo sw. bal. mic/line
Input connectors B	Jack/XLR combo / RCA line level
Line output type	XLR male balanced
Speaker level input	N/A
External speaker out	N/A
INPUT IMPEDANCE
Mic	470 OHMS
Line input A	47K
Line input B	10 KOHMS
Main eq	HF Shelving +/-12dB@10KHZ LF Shelving +/-12dB @80Hz
DIMENSIONS & WEIGHT
Height ( mm / ins )	675
Width Front / Rear / mm / ins	460
Depth ( mm / ins )	450
Net weight ( kg / lbs )	29.5
Gross weight ( kg / lbs )	33.6
