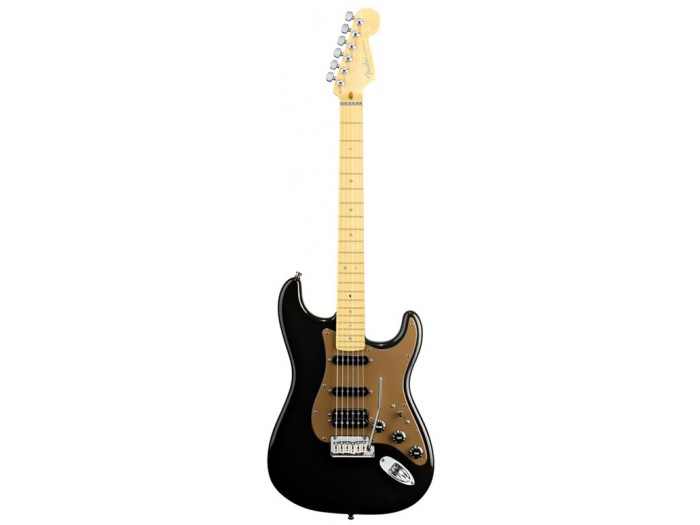

Fender AMERICAN DELUXE STRAT HSS MN MTB **

Model Name: American Deluxe Stratocaster HSS

Model Number: 010-1502-764

Series: American Deluxe Series

Color: Montego Black, (Polyurethane Finish)

Body: Select Alder

Neck: Maple, Modern “C” Shape, (Satin Polyurethane Finish)

Fingerboard: Rosewood, 9.5” Radius (241mm)

No. of Frets: 22 Medium Jumbo Frets

Bridge: Fender Deluxe 2-Point Synchronized Tremolo Tremolo with Pop in Arm

Machine Heads: Fender/Schaller Deluxe Staggered Cast/Sealed Locking Tuning Machines

Hardware: Chrome

Pickguard: 1-Ply Beveled Gold Vinyl

Scale Length: 25.5” (648 mm)

Width at Nut: 1.6875” (43 mm)

Case: Standard Molded Case Included

Pickups

• 1 Fender DH-1 Humbucking Pickup (Bridge)


• 1 Samarium Cobalt Noiseless Strat Pickup (Middle)


• 1 Hot Samarium Cobalt Noiseless Strat Pickup (Neck)

• Master Volume (with S-1 Switch)


• Tone 1. (Neck Pickup)


• Tone 2. (Middle/Bridge Pickups and Neck/Middle/Bridge Pickup Combinations)

S-1 Switch Up:

• Position 1. Full Bridge Humbucking Pickup with Coils in Series (Lead Tone Control)


• Position 2. Middle Pickup and Inside Coil of Bridge Humbucking Pickup in Parallel (Lead Tone Control)


• Position 3. Middle Pickup (Lead Tone Control)


• Position 4. Neck and Middle Pickup in Parallel (Lead and Rhythm Tone Controls)


• Position 5. Neck Pickup (Rhythm Tone Control)

• Position 1. Full Bridge Humbucking Pickup with Coils in Series (Lead Tone Control)


• Position 2. Full Bridge Humbucking Pickup with Coils in Series, in Parallel with Neck Pickup (Lead and Rhythm Tone Controls)


• Position 3. Full Bridge Humbucking Pickup with Coils in Series, in Parallel with Neck and Middle Pickups that are Paired in Series (Lead and Rhythm Tone Controls)


• Position 4. Inside Coil of Bridge Pickup Paired in Series with Neck Pickup, in Parallel with Middle Pickup (Lead and Rhythm Tone Controls)


• Position 5. Middle Pickup in Series with Neck Pickup (Rhythm Tone Control)

• S-1 Switching


• Abalone Dot Position Inlays


• Highly Detailed Fret Work


• Aged Knobs and Switch Tip
