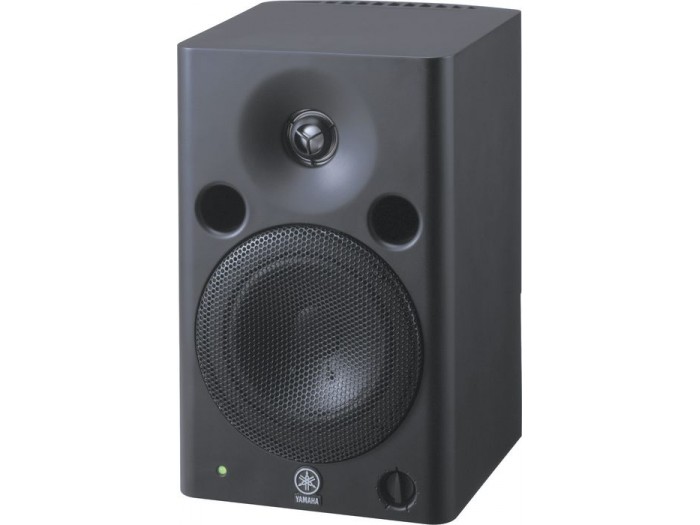

Yamaha MSP5

Cena po komadu!

Sledeća generacija studijskog standarda u monitorima od Yamaha-e

Yamaha MSP5 STUDIO je dvosistemski bi-amp bass reflex zvučnički sistem koji pruža izvrsnu preciznost u analognoj ili digitalnoj produkciji u stereo i surround formatima. Kompaktne dimenzije čine ga idealnim izborom za manja project studija i DAW bazirane sisteme.
MSP5 STUDIO poseduje 5-inčni woofer koga pokreće 40-watt-no pojačalo i 1-inčni kupolasti tweeter sa pojačalom od 27 watt-i. Woofer i titanijumski tweeter poseduju naprednu funkciju magnetne strukture koja postiže izuzetno nizak nivo distorzije. Napredni nizajn drivera i kutije omogućava jednaku disperziju celog spektra reprodukcije. Ravni frekventni odziv do 40kHz čini MSP5 STUDIO odličnim za mastering.

Magnetno zaštićeno kućište omogućava besprekoran rad pored svih tipova audio, video i kompjuterske opreme bez bojazni od degradacije zvuka usled negativnih efekata okružujuće opreme.

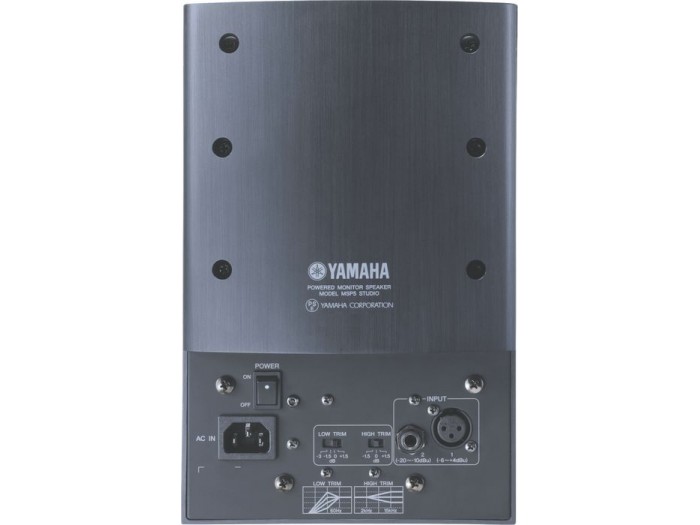

Profesionalne konekcije uključuju balansirane XLR konektore za direktnu kompatibilnost sa profesionalnom opremom. MSP5 takođe nudi i nebalansirani 6.3mm konektor.

• 2-way bass-reflex bi-amplified near field studio monitor
• 5" cone woofer and 1" titanium dome high-frequency unit delivers 50Hz- 40kHz frequency response
• 67 watts (LF 40W + HF 27W) dynamic bi-amplified power
• XLR balanced input and 1/4" unbalanced input
• 31 positions Level Control facilitates precise overall system level matching.
• TRIM Control(High/Low)
• Full magnetic shielding

• Type: Biamp 2-way Powered Speaker
• Crossover Frequency: 2.5 kHz LF: 24 dB/oct, HF: 24 dB/oct
• Overall Frequency Response: 50 Hz - 40 kHz (-10 dB)
• Maximum Output Level: 101 dB, 1 m on Axis
• Dimensions (W x H x D): 7-1/16 x 11 x 8-3/16 inches (179 x 279 x 208 mm)
• Weight: 17.41 lbs (7.9 kg)
• Magnetic Shielding: Yes
• Low frequency driver: 5" cone
• High frequency tweeter: 1.0" Titanium dome
• Enclosure Type: Bass-Reflex
• Material: PP
• Output Power: LF 40 W THD = 0.02 %, RL = 4 Ohms; HF: 27 W, THD = 0.02 %, RL = 6 Ohm
• S/N, IHF-A filter: 94 dB, LEVEL = Max
• Input Sensitivity: XLR-3-31+4 dBu, LEVEL = Center -6 dBu, LEVEL = Max ; -10 dBu, LEVEL = Center -20 dBu, LEVEL = Max
• Input connector: XLR-3-31 (balanced), 10k Ohms, Phone (unbalanced) 10k Ohms

  Controls
• Level: control 31 positions detent type VR
• High trim: +1.5/0/-1.5 db at 15 khz
• Low trim: +1.5/0/-1.5/-3 db at 60 hz
• Power: switch on/off
• Indicators: LED Green Power on
• Red: Clipping Red
• Power Consumption: 60W
