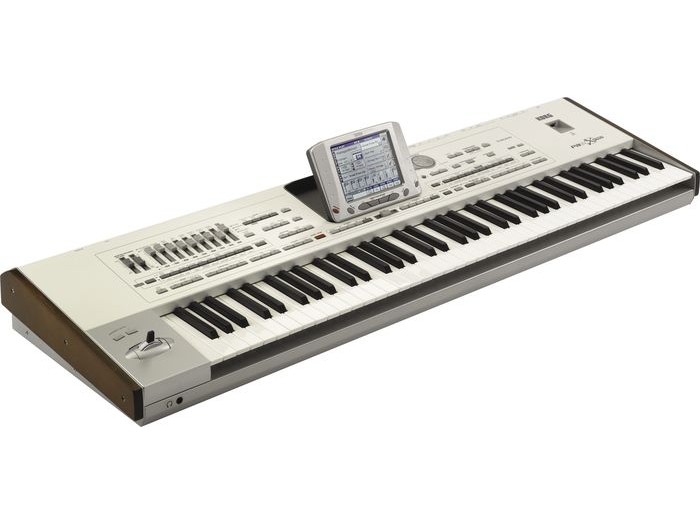

The interactive Korg PA2XPro arranger keyboard is the perfect musical partner for musicians, composers, performers and entertainers. The Pa2XPro quickly transforms musical ideas into complete, polished productions. Guided by Korg's Real eXperience (RX) technology, the PA2XPro is a 76-key arranger that combines unbeatable sound, state-of-the-art effects, advanced MP3 features, comprehensive sample edit tools, fully realized musical styles and a sequencer loaded with compositional aids. Brimming with power, the Pa2XPro employs a slew of assignable controllers and a new motorized, full color TouchView interface, providing an intuitive and musical interface that will encourage your creativity-not stifle it.
Easy to use
With all the technological power packed inside, it was vital that Korg also made the Pa2X Pro easy to understand-and easy to use. But even more, Korg wanted the whole way you use the Pa2X Pro to be an intuitive, musical, fast, foolproof experience. The Pa2Xpro arranger's graphical user interface has an amazing Graphical Colour Touch Screen, so you simply think, point and click for easy and intuitive use-RX Technology at work for you! The screen of the Korg Pa2X Pro is a motorized tilting display with the capability to select the right viewing angle, and one of the 7 different background colors in the Graphical User Interface. You can be sure the display can be read in all lighting and performing conditions, a truly professional feature. A manual "clutch" allows you to adjust the motorized display, even with the power off.
Musicians of all levels can make great music quickly, with the 2 interface modes: EASY and EXPERT. The EASY mode shows only the most important controls while keeping a clean and easy interface, useful for beginners or for live performances. In EXPERT mode you have full editing control. Nothing stands between you and your professional performance.
The 2 Switches and 8 Sliders (the 9th acts always as an MP3 Volume control, except for Digital Drawbars) are fully assignable so your live performances work the way you want them to. Use the Sliders as Organ Drawbars, controlling the 9 footages of a tone wheel organ; or as volume controls for each part of a backing style or fir mic settings.
When you need more information, check out the multilingual contextual Help System that is standard on the Korg Pa2X Pro!
Keyboard: 76 semi-weighted keys with Velocity and Aftertouch
System: OPOS (Objective Portable Operating System) and RX (Real eXperience) Technology Multitasking, Load while play feature Upgradable Operative System — SSD Solid State Disk
Tone Generator: KORG EDS (Enhanced Definition Synthesis) sound generator: 120 Voices, 120 Oscillators Filters with Resonance — Three band EQ for each track
Effects: 4 Stereo Digital Multi-Effect systems 124 Effects types plus VOCODER Final semiparametric three band EQ — Voice Processor Technology by TC Helicon: Three-part Harmonizer, Reverb, Delay, Compressor, EQ, Gate
Sounds-Drum Kits: More than 950, including a Stereo Piano and GM Level 1 & 2 compatible Sounds, 63 Drum Kits — User area: 256 Sounds, 64 Drum Kits — Digital Drawbars: 9 Footages — Realtime controls: Assignable Sliders — Full editing of Sounds and Drum Kits — Sampling: Record, Edit, Time Slice, Load/Import of Korg, Wav, Aiff and Akai files <## HC mdash...
Styles: More than 400 preloaded Styles, SSD-resident, freely reconfigurable — Up to 960 available Style locations including the Favorite banks — Eight Style tracks, 4 Single Touch Settings, 4 Pads and one Style Performance per Style — Guitar Track mode, Parallel and Fixed NTT — Compatible with old "i-Series" and Pa series Style format — Style Record...
Performance/STS: 320 Realtime Performance locations — STS: Memorize Realtime tracks and Voice Processor settings, up to 4 x 960 Styles, up to 4 x SongBook entries
Realtime Tracks: Four Keyboard tracks (Upper 1, 2, 3, Lower) — 4 Pad tracks
Song Play: Patented XDS Crossfade Dual Sequencer Player compatible with SMF (formats 0 and 1), KAR and MP3 files — 2 Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls — X-Fader Balance control — Lyrics and Chord data can be displayed on-screen, or on an external video monitor (with VIF4 option installed) — Markers — Jukebox function
MP3 Player/Recorder: Double MP3 Player and MP3 Recorder. Possibility to Play two MP3 files at the same time in Song Play Mode with Real Time Transpose (+6/-5 semitones) and Tempo change(ñ30%). Record MP3 files including Styles, SMF, Real Time Tracks, Pads, Microphone and Effects
Sequencer: Quick Record (Backing Sequence), Multitrack and Step Record functions — Full-featured sequencer — 16 tracks — Up to 200,000 events — SMF native format
SongBook: Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes — User-definable custom lists — Filtering and Ordering options
Compatibility: "i-Series" models: Styles — Pa series: Style, Performance, Program/Sound, Song, SongBook, Pad
Multi Pad: 4 Assignable Pads + Stop Button. Pad Record function
Help System: Hypertextual, Contextual, Multilingual
General Controls: Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose, Master Transpose, Style Change, Quarter Tone and Arabic Scale memorized inside Performance/STS — Realtime controllers: Joystick (pitch + modulation), 8 Assignable Sliders, MP3 Volume, 2 Assignable Switches, Dial, Up/+, Down/-
Control Inputs: Damper Pedal, Assignable Pedal/Switch, EC-5 (Programmable Multi-Switches)
Analog Output: Unbalanced/Balanced Jack Left/Mono, Right/Mono, Out 1, Out 2, Headphones (in the front panel)
Digital Output: S/P DIF (48 kHz — coaxial) mirroring the Main Stereo Outputs
Line Input: 2 Unbalanced/Balanced Jack Left/Mono, Right/Mono
Microphone Input: Combo XLR balanced with Gain control (20 to 55 dB) and switchable Phantom Power
MIDI: In, Out, Thru standard Midi connectors- USB to Midi using the USB Device port — Individual track assignment — 8 user definable MIDI Setups
USB: 2 USB Host Front/Rear (2.0 Hi Speed) and 1 USB Device Rear (1.1 Full Speed) connections
Hard Disk:
Standard internal 2.5" ATA Hard Disk Drive
DVD-CD Player — Floppy Disk:
Optional using standard USB DVD/CD/FD Drives to be connected to USB Host ports
Display: Motorized Tilt Display — Resolution: 320 x 240 pixels — Color TouchView Graphic Touch Screen
Clock: Internal System Clock
Consumption: 30 Watt
Dimensions: 1207 / 47.52" (W) ž 365 / 14.37" (D) ž 136 / 5.35" (H) mm / inch without music stand and with the display fully lowered
Weight: 18 kg / 39.68 lbs
Accessories: Manual, AC Power Cable, Music Stand, CD-Rom
