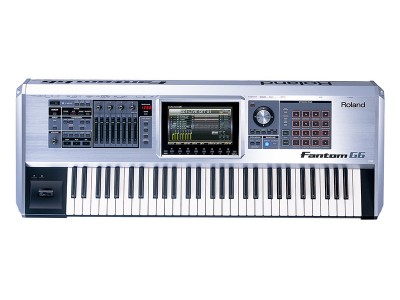

The Roland Fantom-G6 Workstation is a dream keyboard instrument that redefines the boundaries of playability and creativity. Advanced sound engine, revolutionary ARX SuperNATURAL™ expansion bay, large-sized color LCD, powerful new audio/MIDI sequencer, first-class "Ivory Feel" weighted keys and more make the Fantom-G6 a keyboard to contend with.
Advanced Sound Engine
Driven by a powerful new audio processor, the Roland Fantom-G6 provides new sonic depth and versatility. With twice the wave-ROM capacity of its predecessor, the Fantom G6 contains a treasure trove of Roland's world-famous SRX-quality sounds. But what really sets the Fantom-G6 apart is its new ARX expansion, which allows additional SuperNATURAL sound-sets and fully dedicated synth and effects engines to be added to this already powerful live workstation.
SuperNATURAL™ ARX Expansion
Fantom-G6 provides ARX slots that accommodate two SuperNATURAL expansion boards. SuperNATURAL is Roland's unique behavior-modeling technology that enables a new level of organic, emotional expression previously unattainable in synthesizers. Applied to traditional-instrument sounds, SuperNATURAL enables the delicate, organic tonal changes and playing nuances of real musical instruments. It's also a powerful tool for electronic and non-traditional sounds, breathing amazing new life and expression into synthesis.
Power Sequencer Onboard
The Fantom-G is the first Roland instrument to feature Roland's newly designed power sequencer. In conjunction with the large-size LCD, this pro-level composition tool provides 128 tracks (including 24 audio tracks) in a fully integrated audio/MIDI graphical environment. A mouse can be also incorporated for computer-like speed and ease. Other convenient features include combo XLR and TRS connector, phantom power for condenser mics, Hi-Z input for guitar and bass, and line input.
Luxurious Extra-Wide LCD
One look and touch and you'll know that the Fantom-G is an instrument without equal. Only the highest-quality materials have been used to create this dream synth, with a stylish, futuristic design that will turn heads. Front and center is the extra-large 8.5" wide TFT color LCD for enhanced productivity. A first-class assortment of hands- on controls is provided as well, including eight sliders, four knobs, and ten buttons below the LCD.
Amazing FX
Fantom-G is loaded with a state-of-the-art effects engine, with multi-effects available for each Fantom-G sound/part. In 16-part multi-timbre mode, up to 22 effect routings can be used simultaneously. Create complex setups with 16 insert effects per multitimbral patch group, plus global reverbs and choruses. Mastering effects are provided for polishing songs created with the onboard sequencer.
Advanced sound engine with double wave capacity of previous flagship workstations
2 x ARXexpansion with SuperNATURAL—the world's greatest performance-expression technology
Graphic user interface with extra-large 8.5" wide color LCD and mouse connectivity
Newly developed onboard audio/MIDI sequencer with 128 tracks, including 24 audio tracks
Multi-FX for each part; up to 22 effects routings can be programmed simultaneously
Top-of-the-line keyboard action
Heavy-duty casing with aluminum panel
Roland Fantom-G6 Workstation Keyboard Specifications:
Keyboard: 61 keys, with velocity and channel aftertouch
Mamimum Polyphony: 128 voices, shared with the sampling section
Parts: 16 parts (Internal) + 16 parts (External) + 2 parts (ARX)+ 24 parts (Audio Track)
Wave Memory: 256MB (16-bit linear equivalent)
Waveforms: 2,153
Preset Memory:
Patches 1,500 + 256 (GM2)
Rhythm Sets 64 + 9 (GM2)
Live Sets 512
Studio Sets 128
User Memory per one project:
Patches 512
Rhythm Sets 64
Live Sets 512
Studio Sets 128
Effects:
Patch Multi-Effects (PFX) 16 systems, 76 types
Multi-Effects (MFX) 2 systems, 78 types
Chorus 1 system, 3 types
Reverb 1 system, 10 types
Input Effects 1 system, 6 types
Mastering Effects 1 system, 3-band compressor
Data Format: 16-bit linear, .WAV or .AIFF
Sampling Frequency: 44.1kHz
Maximum Sampling Time
[When sampling memory isn't expanded (32MB)]
mono: 360 sec. approx., stereo: 180 sec. approx.
[When sampling memory is expanded with DIMM (544MB)]
mono: 108 min. approx., stereo: 54 min. approx.
Number of Samples per one project: 2,000
Sequencer Section:
Tracks:
MIDI tracks (Internal/External/ARX): max. 128
Audio track: max. 24
Tempo track: 1
Beat track: 1
Resolution: 480 TPQN
Tempo: 5.00 to 300.00
Song per one project: 50
Phrase per one project: 2,000
Note Capacity per one project: approx. 1,000,000 notes
Song Length: 9,998 measures
Recording Method
Realtime recording
Step recording
Controllers:
Pitch Bend/Modulation Lever
Control Knob x 4
Control Slider x 8
Assignable Switch x 2
D Beam Controller
Connectors:
Headphones Jack: Stereo 1/4 inch phone type
A (MIX) Output Jacks (L/MONO, R)
1/4 inch TRS phone type
B Output Jacks (L, R): 1/4 inch phone type
Input Jacks (L/MONO/MIC, R): 1/4 inch phone type
Mic./Guitar Input Jacks: 1/4 inch phone type / XLR type (Phantom power)(Hi-Z)
Pedal Jacks:
Hold Pedal Jack (Half Pedal recognition)
Control Pedal Jack (assignable) x 2
MIDI Connectors:
IN, OUT, THRU
USB Connectors:
USB Computer Connector (supports file transfer or mass storage class, and Audio/MIDI)
USB Mouse Connector
Digital Audio Interface: COAXIAL INPUT / OUTPUT, AC Inlet
Others:
Arpeggiator 128
Arpeggio Sets 128
RPS Sets 32
Rhythm Pattern Sets 32
Chord Memory 128
Chord Memory Sets 128
Display: Graphic Type, 8.5", Wide VGA (800 x 480 dots), backlit LCD (Color)
Pads: 16 pads, Velocity and Polyphonic Aftertouch sensitive
Expansion for sound generator: ARX expansion boards: 2 slots
Expansion for sampling memory: DIMM: 1 slot, supports PC133, CL=2/3, 3.3 V, 128MB, 256MB, 512MB
External Storage Device: USB Flash Memory
Power Supply: AC 117 V, AC 230 V, AC 240 V (50/60Hz), AC 220 V (60Hz)
Power Consumption: 30 W
Accessories
Owner's Manual, CD-ROM (Editor, USB MIDI driver), Power Cord
Options:
Expansion Board: ARX Series, Keyboard Stand: KS-V7 (Fantom-G7/-G6), KS-18Z (Fantom-G8/-G7/-G6), KS-G8 (Fantom-G8), Pedal Switch: DP series,
Foot Switch: BOSS FS-5U, Expression Pedal: EV-5, USB Flash Memory: M-UF1G, M-UF128, Microphone: DR series, Headphones: RH-series
Size and Weight:
Width: 42 inches, 1,066 mm
Depth: 16-3/16 inches, 411 mm
Height: 5-5/8 inches, 142 mm
Weight: 32 lbs., 14.5 kg
