Keyboard
76 keys with velocity sensitive
Sound Source
Max polyphony 64
Tones over 1000 Panel Tones, 34 Drum Sets
Multi timbre parts 32
Effect Processors 8 Reverb, 8 Chorus, 41 Multi-FX
Compatibility GM2 / GS / XG Lite
Styles
Preset styles 136 styles
Styles variations 4 Main / 4 Intro / 4 Ending / 6 Fill In
Sync Start/Sync Stop Yes
User Style Composer 8 Tracks with Micro editing / Piano Roll editing / Guitar Mode programming
Direct Media Link Yes
One Touch Setting 4 for each Style with customization
Cover
For Songs and Styles, 26 ALL, 16 Drum, 24 Bass
Makeup Tools
For Songs and Styles, Makeup Tool Freeze Data function
Panel Controls
Rotary Encoder with push switch Yes
Pitch Bender and Modulation Yes
D Beam Yes
Keyboard / Accomp Balance Dedicated knob
Keyboard Part / Part Assign Switches Upper1, Upper2, Lower, Manual Bass
Display 16 gray-scale graphic LCD with touchscreen
Player / Recorder
Mark / Jump Yes, 4 locations for each Song
Sequencer 16-Track Sequencer, with Micro Event List / Piano Roll editing, Guitar Mode programming, SMF to Style Converter
DigiScore Yes
Lyrics Display Yes, with automatic Chord Extractor
Text Import / Export Yes
User Programs
144
Music Assistant
more than 300 presets, programmable
Data Storage
FDD 3.5” 2HD / 2DD
Internal SSD (Solid State Disk) 15,5 MB (approx. 14,1 MB as preloaded factory data)
PCMCIA Slot 1 PCMCIA slot for: Microdrive (1.0-inch hard disk drive)*,Compact Flash*, Memory Stick*,Smartmedia* *using Card adaptor*the E-60 system manages up to 4 GBytes of the above storage Media
Type of files managed Style, Song(SMF), User Program, MIDI Set, Play List, File.txt
Other functions
Guitar Mode Yes, for Acoustic and Electric Guitars with Stereo doubling function
Finder Song, Style, User Program
Easy Setting Arranger, Organ, Guitar, Piano
Chord Alteration System Adaptive Chord Voicing
Melody Intelligent Yes, 18 types, Melody Intelligent 2nd Tone customization
Tap Tempo Yes
Transpose Yes, -6 ~ +5
Song Chord Extractor Yes
Fade IN / OUT Yes, programmable
V-LINK Yes
Updating system Yes, on Flash
Connectors
MIDI IN, OUT
USB for data transfer and MIDI
Audio Output Main (L / mono, R)
Jacks Hold, Foot Switch / Expression
Phones 2
Internal Amplification
Speakers 2 x 10 cm (woofer), 2 x 3 cm (tweeter)
Rated Power Output 2 x 8 W + 2 x 2 W (with Bass Reflex System)
Others
Supplied accessories Owner’s Manual, External AC adaptor, Music Rest, bundled CD-ROM (it contains E-60 backup data, USB-MIDI driver (for Mac/PC), DATABASE MANAGER software)
Size and Weight
Width
1,260 mm 49-5/8 inches
Depth
374 mm 14-3/4 inches
Height
335 mm 13-3/16 inches
Weight
13.0 kg 28 lbs. 11 oz.

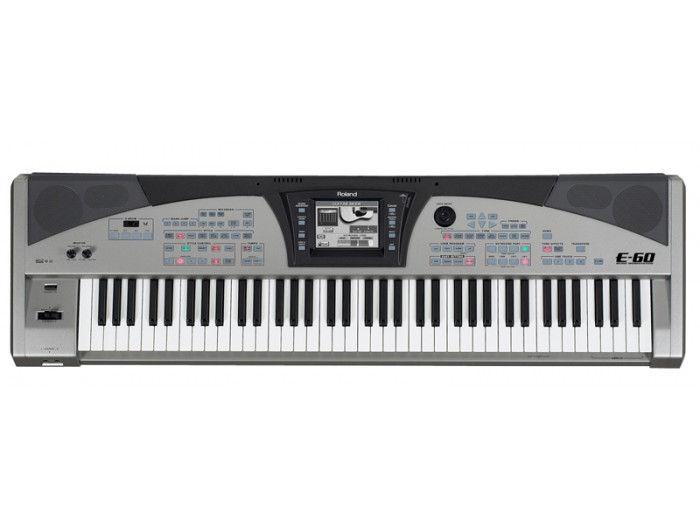

![Roland E-60 Music Workstation - Aranzer Roland E-60 Music Workstation - Aranzer](https://www.mitrosmusic.com/media/inlineimage/upload_1065_1_d.jpg)
