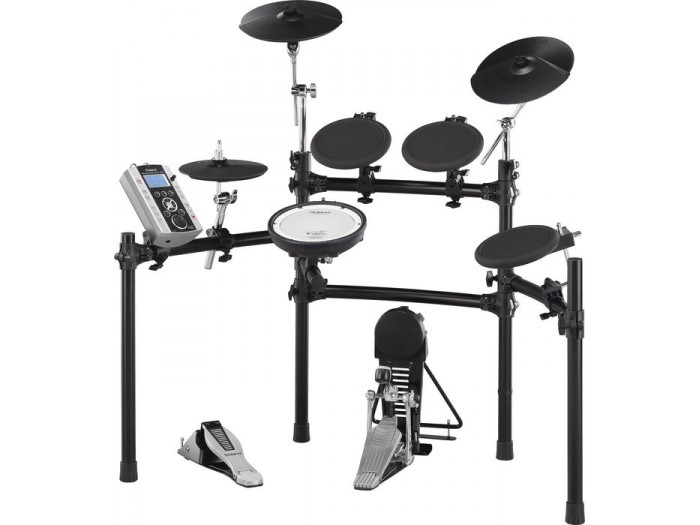

For drummers who have wanted to get in on the Roland state-of-the-art V-Drums that have all the great features, but haven't had the budget, the TD-9S from the V-tour series is the perfect solution. Whether you need an electronic kit for the studio, touring, or just simply for practice, this drum set is a great choice. It is equipped with a comfortable mesh snare drum pad with rim triggering that gives you a real acoustic feel. The TD-9 sound module is loaded with fresh sounds and offers a deeper level of expression. Together with Roland's most advanced triggering technology, this electronic drum kit is destined to become a big hit with drummers worldwide.
Expanded Sound Engine, Unlimited Expression
Fast, Friendly, Fun
No more squinting at a small screen - the Roland TD-9 is outfitted with a luxurious, large backlit display with accompanying oversized buttons and controls. It's friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.
Interactive Innovation
Play along with real-audio backing songs to build your musical experience base. Use the USB port to play along with audio files of your choice (.wav), back up your data, or save a "quick record" performance. The Quick Record and Quick Play features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. A special connecting cable allows for fast, clean and easy connection to the pads.
Convenience & Stability
Whether you're in search of a clean, streamlined setup for your home or a strong rack for gigs that sets up and tears down fast, the Roland TD-9S drum kit delivers.
Advanced TD-9 module with expressive new sounds, real-audio songs and patterns
Comfortable mesh-head snare pad with rim triggering
Quiet rubber dual-trigger tom pads
Two-way triggering for ride cymbal
Scope function with graphical LCD display
USB host for audio-file (.wav) playback
Special cable for easy pad connections
Sturdy drum rack (MDS-9) with newly designed ball-clamps for the snare and cymbal arms and a new hi-hat mount for maximum flexibility
The TD-9S components include:
1 TD-9 Percussion Sound Module with multi-pin cable harness and module mount
1 PDX-8 Mesh Snare Drum Pad
3 PD-8 Dual-Trigger Tom Pads
1 KD-8 Kick Pad
1 CY-5 Dual-Trigger Cymbal Pad
2 CY-8 Dual-Trigger Cymbal Pad
1 FD-8 Hi-Hat Control Pedal
Drum set rack
Clamps and arms for both the pads and cymbals
TD-9: Percussion Sound Module
Drum Instruments: 522
Drum Kits: 50
Instrument Parameters
KICK: Head Tuning, Muffling
SNARE: Head Tuning, Muffling
TOM: Head Tuning, Muffling
HI-HAT: Cymbal Size, Fixed Hi-Hat
CYMBAL: Cymbal Size, Sustain
OTHERS: Pitch, Decay
Effect Types: Ambience (9 types), 2-Band Equalizer
Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape
Mixer Parameters: Volume, Pan
Percussion Set: 1
Song
Preset Songs: 50
Parts: 4
Play Function: One shot, Loop, Repeat
Tempo: 20-300
Quick Rec
Resolution: 480 ticks per quarter note
Recording Method: Real-time
Maximum Note Storage: Approx. 32,000 Notes
Audio File Format: .wav
Display: 128 x 64 dots Graphic Type LCD (backlit LCD)
Connectors: Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)
Output Impedance: 1.0 k ohms
Power Supply: AC Adaptor (DC 9V)
Current Draw: 500 mA
Accessories: Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate
Options
Cymbal Mount (MDY-10U), Pad Mount (MDH-10U), Personal Drum Monitor (PM-10, PM-30), V-Drums Accessory Package (DAP-3), V-Drums Mat (TDM-10)
Size and Weight
51-3/16" W (1,300 mm) x 47-1/4" D (1,200 mm) x 53-3/16" H (1,350 mm)
Weight: 27 lbs. 9 oz. (12.5 kg)
