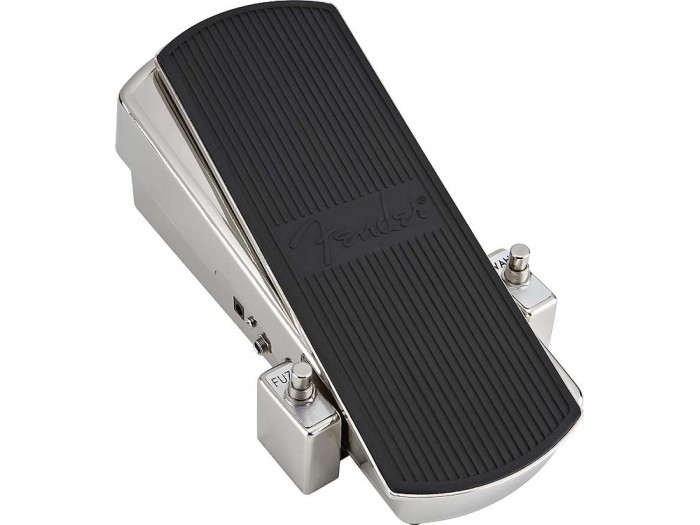

RASPRODAJA - pedale, procesori, efekti FENDER FUZZ WAH PEDAL

Wah Control--Tilt the pedal back and forth.

Fuzz Control--Rotate the pedal left and right.

Bottom Panel:

Effects Order--Switches the order of the effects in the signal path to provide two distinct sounds. Experiment!

Fuzz Volume--Adjusts the volume level of the Fuzz effect so that you can match the volume level of your guitar when Fuzz is turned off. Also try setting it for a Fuzz effect volume boost!

Fuzz Switch--Turns the Fuzz effect on-off.

Wah--Turns the Wah effect on-off.

Input Jack--Plug your guitar (or other audio source) in here. Un-plug the input plug from this jack to turn off the device and save power (very important) when not in use.

Output Jack--Connect to the input of your amplifier (or other audio device).

9V Battery--Open the battery compartment on the bottom of the unit by removing the thumb screw. Use alkaline batteries.
