Nominal Input Level |
-20 dBu |
Input Impedance |
1 M ohm |
Nominal Output Level |
-20 dBu |
Output Impedance |
1 k ohm |
Recommended Load Impedance |
10 k ohms or greater |
Bypass |
Buffered bypass |

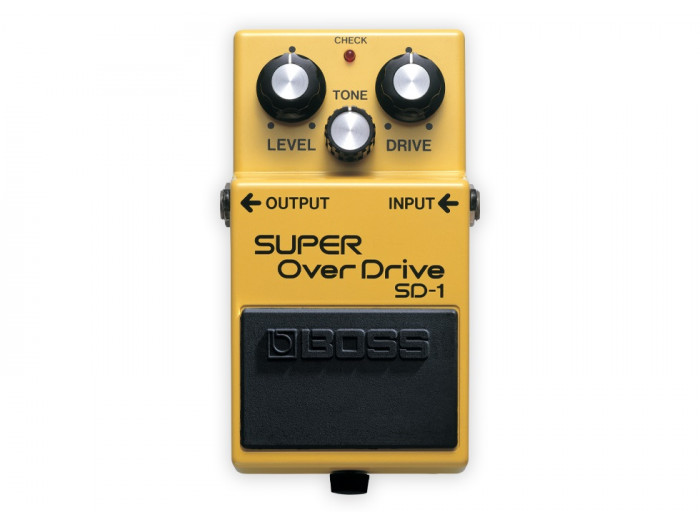

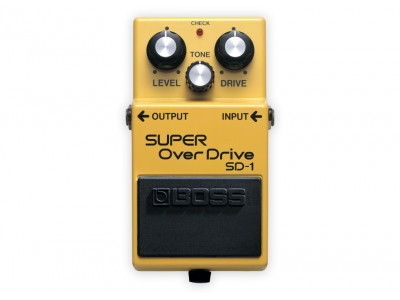

Controls |
DRIVE knob |
TONE knob |
LEVEL knob |
Pedal switch |
Indicator |
CHECK indicator (Used for indication of check battery) |
Connectors |
INPUT jack: 1/4-inch phone type |
OUTPUT jack: 1/4-inch phone type |
DC IN jack |
Power Supply |
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) |
AC adaptor (PSA series: sold separately) |
Current Draw |
10 mA |
Expected battery life under continuous use |
Carbon: Approx. 60 hours |
Alkaline: Approx. 90 hours |
*These figures will vary depending on the actual conditions of use. |
Accessories |
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") |
Carbon-zinc battery (9 V, 6F22) |
Options (sold separately) |
AC adaptor: PSA series |
SIZE AND WEIGHT |
Width |
73 mm |
2-7/8 inches |
Depth |
129 mm |
5-1/8 inches |
Height |
59 mm |
2-3/8 inches |
Weight (including battery) |
360 g |
13 oz |
